Perforated Steel Rack Decks: A Specialty Alternative to Standard Wire Decking
For most warehouse storage applications, standard wire decking remains the preferred solution for pallet rack systems. However, there are situations where a more specialized form of steel rack decking is needed. Standard wire decking is economical, durable, easy to install, and allows water from overhead fire sprinkler systems to penetrate through multiple rack levels.
In fact, standard wire mesh decking solves the storage needs of probably 95 percent of pallet rack users.
Occasionally, however, we receive a call from a customer who simply cannot use the traditional 2-inch by 4-inch wire mesh configuration found on a standard wire deck panel. Their products are too small, require a flatter storage surface, or need more continuous support than wire mesh can provide.
When that happens, perforated steel rack decking may be the perfect solution. This specialized form of steel pallet rack decking provides greater product support than traditional wire decking while still allowing sprinkler penetration.
Why Some Warehouses Need More Than Standard Wire Decking
Standard wire decking works exceptionally well for palletized loads, cartons, and general warehouse storage. It has become the industry standard because it is affordable, durable, and compatible with virtually every type of pallet rack system. However, not every storage application is the same.
Some warehouse products are small enough to settle into the openings of a wire deck. Other products require a smoother storage surface for stability, product protection, or handling purposes. At first glance, a solid steel shelf seems like the obvious answer.
The problem is that most warehouse fire protection systems rely on water from overhead sprinklers reaching lower rack levels. Completely solid shelving can interfere with sprinkler penetration and create concerns with fire protection requirements. This is where perforated steel rack decking fills an important niche.
What Is Steel Rack Decking?
Steel rack decking is a broad category of rack shelving products designed to provide support for stored materials within a pallet rack system. One specialty form of steel rack decking is perforated steel decking, which provides many of the benefits of a solid shelf while still allowing water, air, and light to pass through strategically placed perforations.
Steel rack decking is a broad category that includes wire decking, perforated steel rack decking, corrugated decking, and solid steel pallet decking systems designed for pallet rack storage.
The result is a storage surface that is significantly more continuous than traditional wire decking while maintaining the open area needed for sprinkler effectiveness.
For customers who cannot work with a traditional 2-inch by 4-inch wire mesh pattern, perforated steel decking often provides the best of both worlds.
A Specialized Product for a Specialized Application
Perforated rack decking is not a high-volume warehouse product.
In fact, only a handful of manufacturers in North America currently produce these specialized deck panels.
One of the industry’s leading manufacturers is Nashville Wire Products, widely recognized as one of the largest wire decking manufacturers in the United States.
These decks are specifically designed for warehouse operators who need something between traditional wire mesh decking and solid steel rack shelving.
Unlike standard pallet rack steel decking, perforated decks are typically selected only when a warehouse requires a more continuous storage surface for cartons, small parts, or irregularly shaped products.
Because of the specialized nature of the product, perforated steel decks are typically specified only when standard wire decking, corrugated steel decking, or other shelf options are not suitable.
While perforated steel rack decks represent a very small percentage of the rack decking we sell, they are often the perfect solution when traditional wire decking, corrugated decking, or solid shelving cannot meet a customer’s storage requirements.

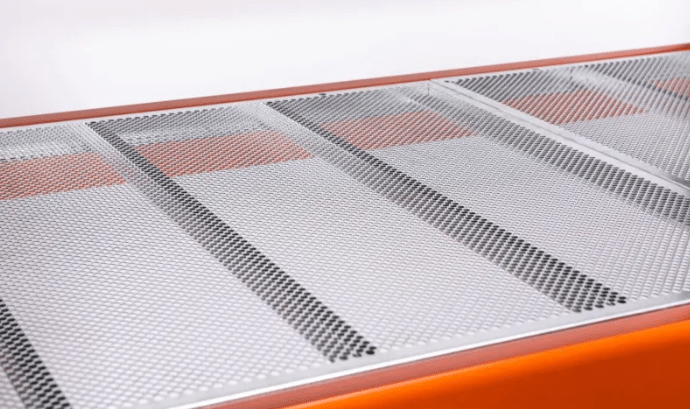

Nashville Wire Perforated Deck Specifications
Nashville Wire’s perforated steel rack decks are engineered similarly to traditional wire deck panels.
A standard 42-inch by 46-inch deck includes:
• Three structural support channels
• 18-gauge pre-galvanized steel construction
• Compatibility with standard pallet rack systems
• Designed for 1 5/8-inch step beams
• 1-3/4-inch top of beam dimension
These specialized deck panels are designed to fit standard pallet rack systems utilizing A-style and 5/8-inch step beams commonly found in warehouses throughout Ohio and across the country.
The use of pre-galvanized steel provides additional corrosion resistance and long-term durability, making these decks suitable for demanding warehouse environments.
How Much Weight Can a Perforated Steel Deck Hold?
The Nashville Wire perforated steel deck carries a uniform distributed load capacity of approximately 2,000 pounds per panel.
For many warehouse applications, this capacity is more than adequate.
Other manufacturers, including Little Giant, offer solid steel and perforated steel rack decks with capacities of approximately 3,000 pounds per panel.
While the additional capacity may be beneficial in certain situations, many customers simply do not require that level of loading.
The Nashville Wire design often strikes an excellent balance between strength and cost.
How Much More Do Perforated Steel Rack Decks Cost?
Let’s be honest. Nobody purchases perforated steel rack decks because they are the least expensive option. They are a specialty product designed to solve a specific storage problem.
As a general comparison:
• Standard wire decking serves as the baseline
• Nashville Wire perforated steel decks typically cost about five times (5X) more than a standard wire deck panel
• Solid steel and heavy-duty perforated steel decks from other manufacturers often cost approximately seven times (7X) more than standard wire decking
That means the Nashville Wire perforated deck can be roughly 30 percent less expensive than competing solid steel or perforated steel deck designs.
For customers who need this type of storage surface and dont need the higher capacity, that cost difference can be significant.
What About Corrugated Steel Rack Decking?
Corrugated steel decking is another option frequently considered when a more solid storage surface is needed. It is generally less expensive than perforated steel rack decking and provides more product support than traditional wire mesh.
Some warehouse managers evaluating solid steel pallet decking also consider corrugated steel decking because it provides a more continuous surface than wire mesh. However, corrugated panels still contain ridges and valleys that may not be suitable for every application.
For some products, those grooves create the very problem the customer is trying to eliminate. When a flatter, more uniform storage surface is required, perforated steel rack decks often become the preferred solution.
Steel Pallet Rack Decking Options
Warehouse operators today have several steel pallet rack decking options available. Traditional wire decking remains the most common solution, while corrugated decking, solid steel pallet decking, and perforated steel rack decking are generally reserved for more specialized storage applications.
Perforated Steel Rack Decks vs. Wire Decking
| Feature | Standard Wire Decking | Perforated Steel Rack Decking |
|---|---|---|
| Cost | Lowest Cost Option | Approximately 5x Higher |
| Sprinkler Penetration | Excellent | Excellent |
| Surface Continuity | 2-inch x 4-inch Mesh Openings | Nearly Continuous Surface |
| Capacity | Varies by Deck | Approximately 2,000 lbs. UDL |
| Corrosion Resistance | Excellent | Excellent |
| Best Application | General Warehouse Storage | Small Parts & Specialty Storage |
For the vast majority of warehouse operations, wire decking remains the best value. Perforated steel decks are reserved for applications where a more continuous storage surface is required.
Advantages of Perforated Steel Rack Decking
Perforated steel decks offer several unique benefits:
✔ More continuous storage surface than wire decking
✔ Better support for small products and irregular items
✔ Allows water from sprinkler systems to penetrate lower rack levels
✔ Durable galvanized steel construction
✔ Cleaner appearance than corrugated decking
✔ Compatible with standard pallet rack beams
✔ Available in multiple capacities and configurations
For the right application, these advantages can easily justify the additional investment.
Not the Right Choice for Every Warehouse
The vast majority of pallet rack systems will continue to use traditional wire mesh decking because it provides the best combination of performance, safety, and affordability.
However, every warehouse has unique storage requirements. When product size, storage conditions, or operational needs make standard wire decking unsuitable, perforated steel rack decks provide a highly effective alternative.
They are not designed for every warehouse. They are designed for the warehouse manager who has a very specific challenge and needs a very specific solution.
And when that challenge exists, few products perform better.
Need Help Selecting the Right Rack Decking?
Choosing the right decking solution is about more than load capacity. Product size, fire protection requirements, storage methods, and budget all play a role in determining the best option for your warehouse.
Midwest Material Handling supplies steel rack decking solutions throughout Ohio, including standard wire decking, perforated steel rack decking, steel pallet rack decking, and other specialty rack shelving products. Whether you’re installing a complete pallet rack system or upgrading an existing storage area, we can help identify the right solution for your warehouse storage application.
Contact Midwest Material Handling today to discuss your storage requirements and request pricing on perforated steel rack decks, wire decking, or complete pallet rack systems.
Frequently Asked Questions About Perforated Steel Rack Decking
What is perforated steel rack decking?
Perforated steel rack decking is a specialty pallet rack shelf designed with thousands of small openings that allow water, air, and light to pass through while providing a more continuous storage surface than traditional wire decking.
Is perforated steel rack decking stronger than wire decking?
Not necessarily. Load capacity depends on the design, gauge of steel, deck dimensions, and support structure. The Nashville Wire perforated deck discussed in this article carries a uniform distributed load capacity of approximately 2,000 pounds per panel.
Does perforated steel rack decking meet fire code requirements?
Perforated steel rack decking is designed to allow water from overhead sprinkler systems to penetrate through rack levels more effectively than solid steel shelving. However, fire code requirements vary by facility and should always be reviewed with a qualified fire protection professional.
How much does perforated steel rack decking cost?
Perforated steel rack decking typically costs approximately five times more than standard wire decking. Some heavy-duty perforated and solid steel deck systems can cost as much as seven times more than traditional wire mesh decking.
What sizes are available?
Perforated steel rack decks are available in multiple widths and depths to fit common pallet rack configurations. Popular sizes include 42-inch and 48-inch depths with widths designed for standard pallet rack beam lengths.
What is the difference between perforated decking and corrugated steel decking?
Corrugated steel decking uses raised ribs and valleys to increase strength, while perforated decking provides a flatter and more uniform storage surface. Warehouses storing small cartons, parts, or products that require continuous support often prefer perforated decking.
Can perforated steel rack decks be installed on existing pallet rack systems?
Yes. Most perforated steel rack decks are designed to fit standard pallet rack beams. The Nashville Wire design referenced in this article is compatible with 1 5/8-inch step beams.
What is the difference between steel rack decking and wire decking?
Steel rack decking is a broad category that includes wire decking, perforated steel rack decking, corrugated decking, and solid steel pallet decking. Wire decking remains the most common choice for general warehouse storage, while specialty forms of pallet rack steel decking are typically used when additional product support or a more continuous storage surface is required.
When should I choose perforated steel rack decking instead of wire decking?
Perforated steel rack decking is typically chosen when products are too small for traditional wire mesh openings, require a flatter storage surface, or need greater product support. For most palletized storage applications, standard wire decking remains the more economical and practical solution.
